[Pilots] FW: SLCT MAG - PFD Message G1000

[gerick001 at comcast.net]

See below for an explanation of the  SLCT MAG message you might see if the system is set to True north instead of the default  Magnetic north



From: Moyer, Michael <mmoyer at capnhq.gov>
Sent: Wednesday, January 26, 2022 5:39 PM
Subject: RE: SLCT MAG - PFD Message



This message is being sent to all CAP Directors of Operations and Standardization & Evaluation Officers.



TEAM:



Please disseminate to all pilots!!!



CAP recently had an event where a crew executed a precautionary return to base (RTB), for a potential Magneto issue. Further research showed the PFD message of SLCT MAG to indicate a Display Unit(DU), Navigation Angle selection of other than Magnetic North.

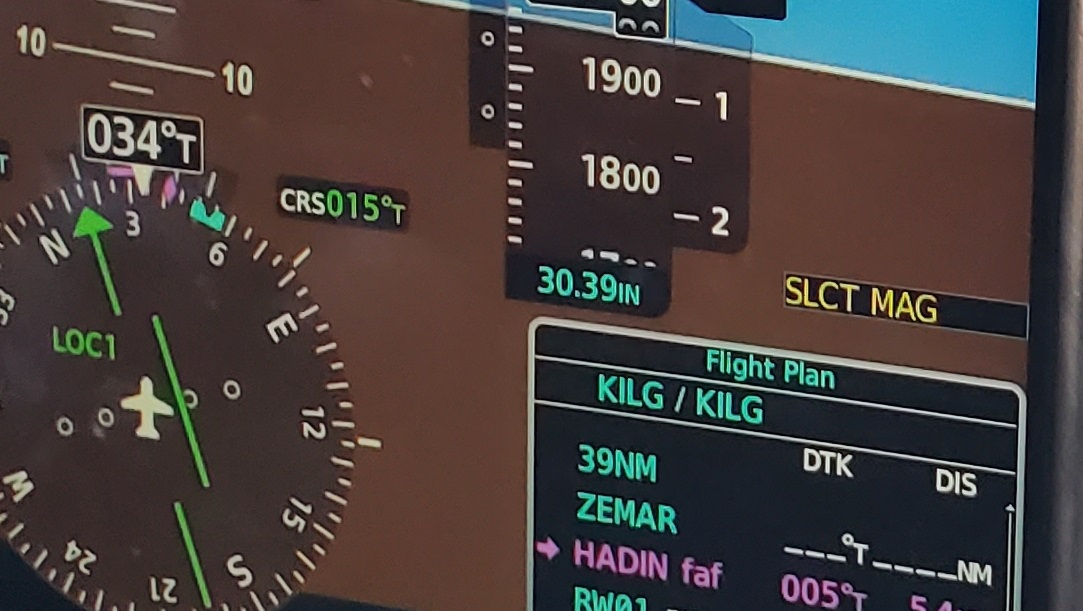

If the pilot/crew has selected the Display Unit for the Navigation Angle to True North, the PFD will show the Annunciator Message of SLCT MAG.  The system is simply reminding the pilot/crew to select the default Display Angle to Magnetic North. Crews may continually see this message when using the DU of True North, for SAR grid navigation.



The G1000 Primary Flight Display (PFD) Annunciator Message can occur in the G1000 aircraft, depending on the software build. It is believed this affects G1000 Nxi aircraft and newer.



This SLCT MAG message can potentially be confused with a Magneto failure / selection event.

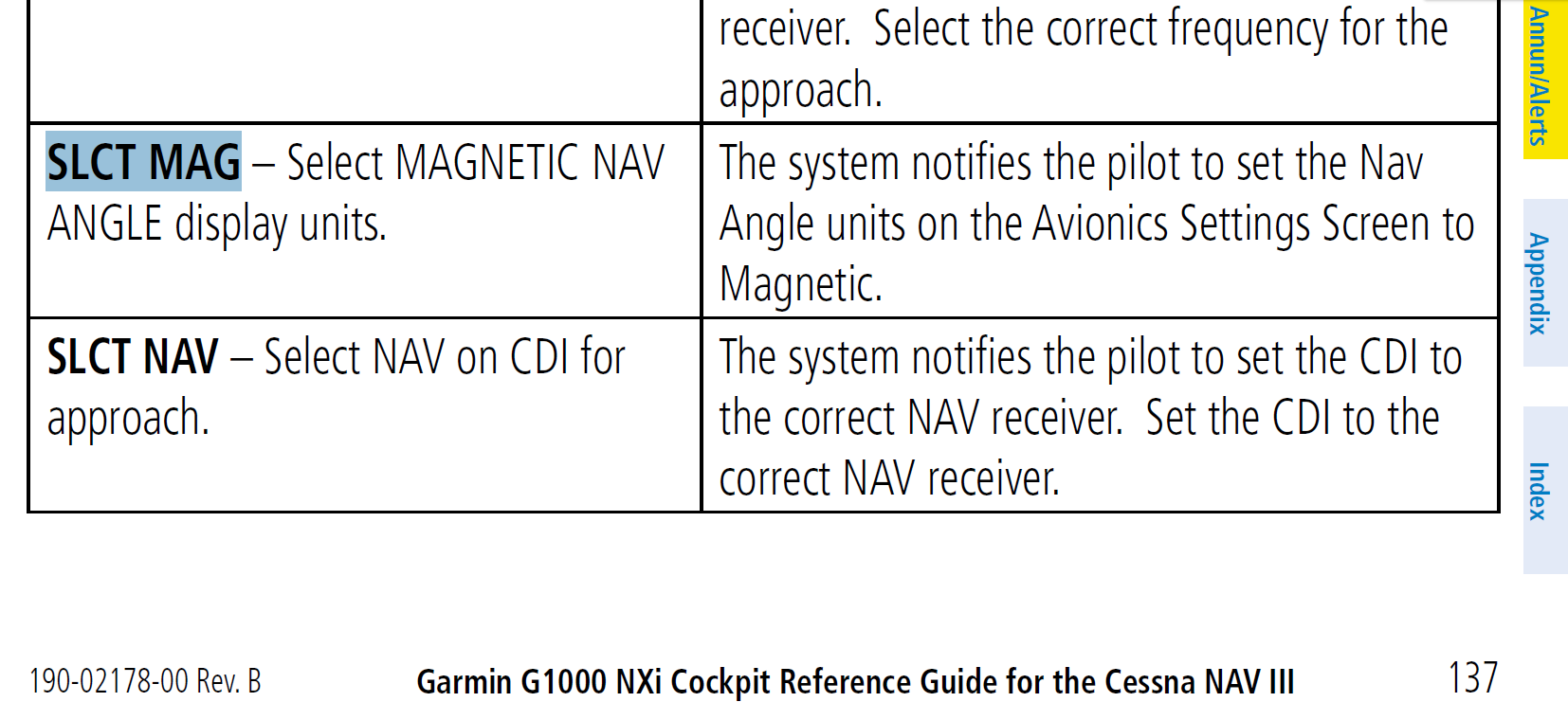

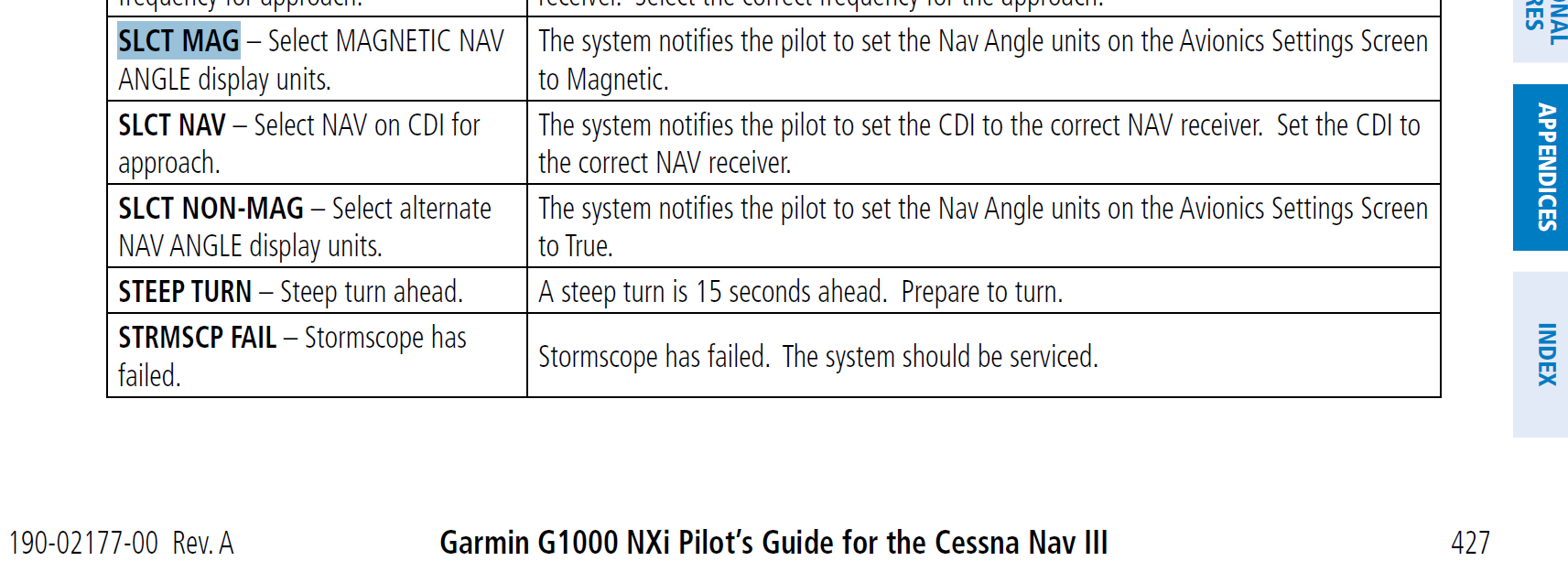

Annunciator information can be found in the G1000 Pilot’s Guide <chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/viewer.html?pdfurl=http%3A%2F%2Fstatic.garmin.com%2Fpumac%2F190-02177-00_A.pdf&clen=29308535&chunk=true>  (http://static.garmin.com/pumac/190-02177-00_A.pdf) and the G1000 Cockpit Reference Guide <chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/viewer.html?pdfurl=http%3A%2F%2Fstatic.garmin.com%2Fpumac%2F190-02178-00_B.pdf&clen=4420666&chunk=true>  (http://static.garmin.com/pumac/190-02178-00_B.pdf)



B/R



-Mike Moyer





Michael R. Moyer
HQ CAP Senior Program Manager

Standardization and Evaluation

Civil Air Patrol | U.S. Air Force Auxiliary



(O) 334.530.5777

mmoyer at capnhq.gov <mailto:mmoyer at capnhq.gov>

 <https://www.gocivilairpatrol.com/> GoCivilAirPatrol.com





Volunteers serving America's communities, saving lives, and shaping futures.
